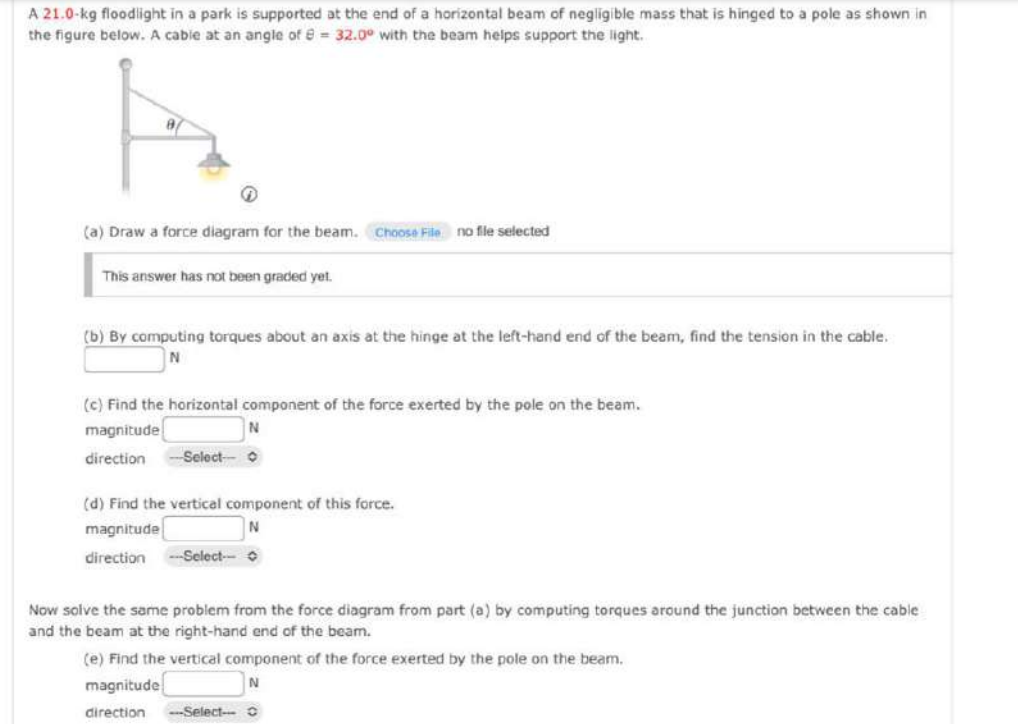

A 21.0-kg floodlight in a park is supported at the end of a horizontal beam of negligible mass that is hinged to a pole as shown in

the figure below. A cable at an angle of 8 = 32.00 with the beam helps support the light.

(a) Draw a force diagram for the beam. Choose File no file selected

This answer has not been graded yet.

(b) By computing torques about an axis at the hinge at the left-hand end of the beam, find the tension in the cable.

(c) Find the horizontal component of the force exerted by the pole on the beam.

magnitude

direction -Select-

N

(d) Find the vertical component of this force.

magnitude

N

direction ---Select--

Now solve the same problem from the force diagram from part (a) by computing torques around the junction between the cable

and the beam at the right-hand end of the beam.

(e) Find the vertical component of the force exerted by the pole on the beam.

magnitude

N

direction -Select-O
