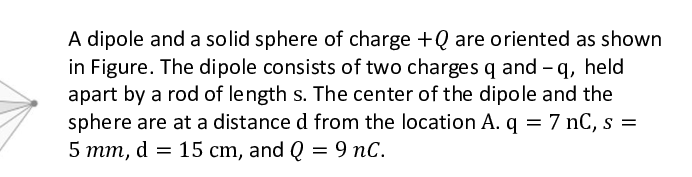

A dipole and a solid sphere of charge +Q are oriented as shown in Figure. The dipole consists of two charges q and – q, held apart by a rod

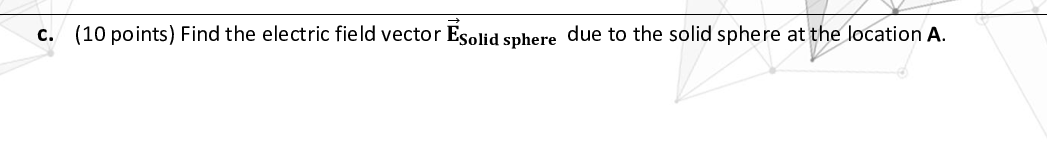

of length s. The center of the dipole and the sphere are at a distance d from the location A. q = 7 nC, s =5 mm, d =15 сm, and Q = 9 nС. a. (10 points) Find the magnitude of the electric field|Edipole |due to the dipole at the location A. b. (10 points) Draw the direction of the electric field due to the dipole at the location A and write the electric field as a vector Edipole: с.(10 points) Find the electric field vector Esolid sphere due to the solid sphere at the location A. d. (10 points) Find the net electric field vector Enet at location A due to dipole and the solid sphere. e. (10 points) If a proton is placed at location A, what would be the net electric force vector F net on the proton?
