Question

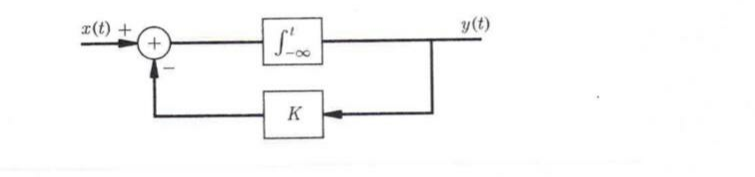

(a) Draw the block-diagram representation for the system characterized by the followinginput-output equation, where x(t) is the input and y(t) the output y(t)=0.25\left[-\frac{d y(t)}{d t}-0.5 \int_{-\infty}^{t} y(\tau) d \tau+x(t)\right] (b) Write the input-output equation for the following system block-diagram

Fig: 1

Fig: 2

Fig: 3

Fig: 4
