Question

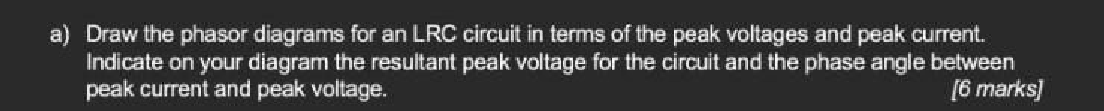

a) Draw the phasor diagrams for an LRC circuit in terms of the peak voltages and peak current.Indicate on your diagram the resultant peak voltage for the circuit and the phase angle between peak current and peak voltage.[6 marks]
