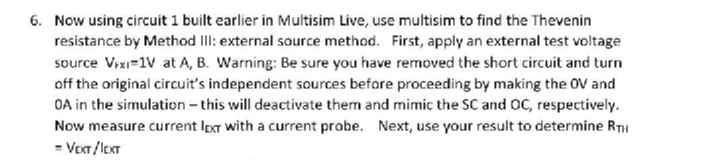

6. Now using circuit 1 built earlier in Multisim Live, use multisim to find the Thevenin resistance by Method III: external source method. First, apply an external test voltage source

Vixi=1V at A, B. Warning: Be sure you have removed the short circuit and turnoff the original circuit's independent sources before proceeding by making the OV and OA in the simulation - this will deactivate them and mimic the SC and OC, respectively.Now measure current text with a current probe. Next, use your result to determine RTH= Vor /lexT a. For simulation use DC Operating point. b. Beside your circuit, indicate the circuit number, also your first & last name using a text annotation (found in the area with the voltage/current probes). C. Obtain a screen capture of your circuit and results for (Vex or Igx). FOR SUBMITTED LAB REPORT, PLACE THIS AT THE END. d. What did you find for RTH = Vox/lox? RTH =__________, e. Do the results match what was found in your analysis of circuit 1 earlier? Why orwhy not? (Hint: if not, you have an error in your analysis)
