Question

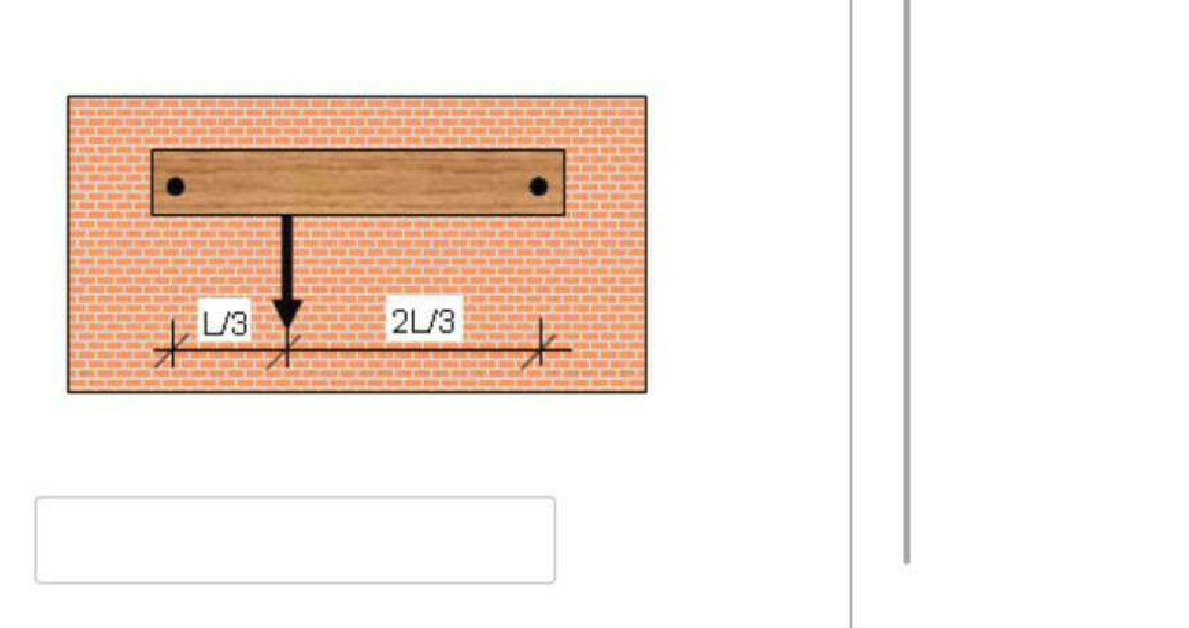

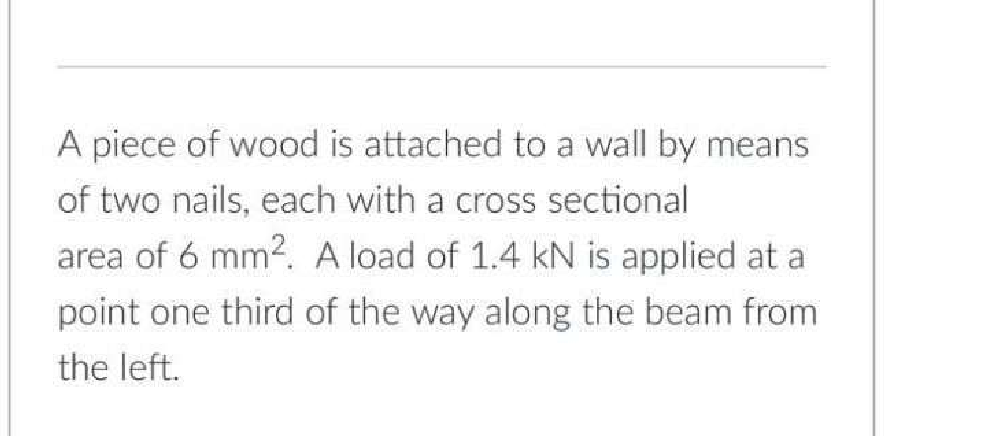

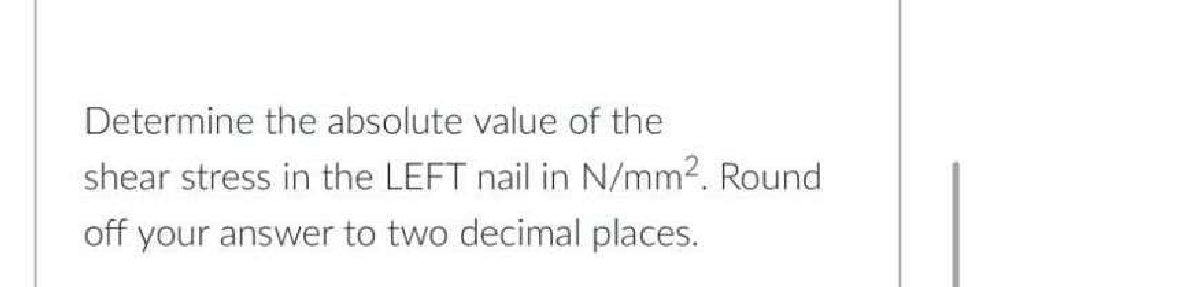

A piece of wood is attached to a wall by means of two nails, each with a cross sectional area of 6 mm². A load of 1.4 kN is applied at a point one third of the way along the beam from the left. Determine the absolute value of the shear stress in the LEFT nail in N/mm². Round off your answer to two decimal places..

Fig: 1

Fig: 2

Fig: 3
