Question

. A series RC circuit is shown below:

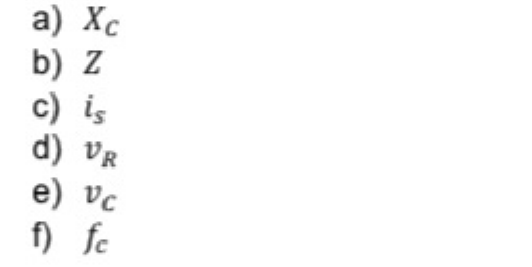

Given; Vs = 20 V rms; fs = 1 kHz; R = 70 Q; C = 12 µF. Determine; a) Xcb) Zc) isd) VRe) vcf) fc

Question image 1Question image 2Question image 3Question image 4
