Question

A series RLC circuit is shown below:

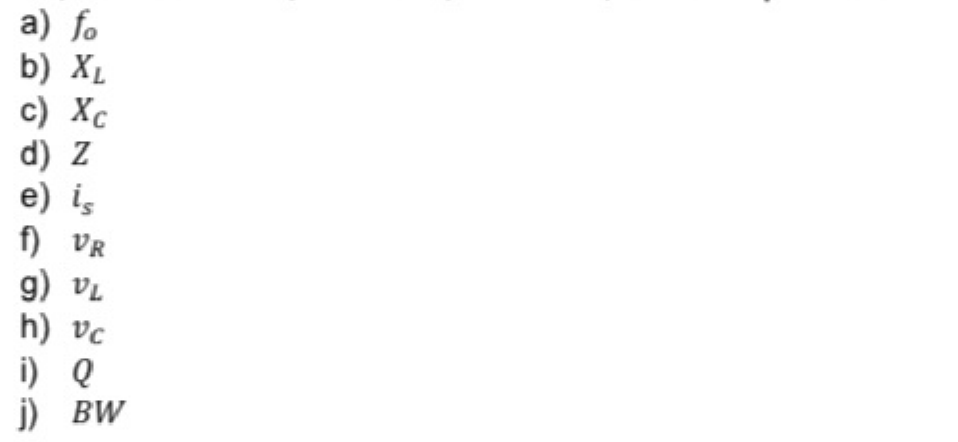

Given; Vs = 50 V rms; R = 10 0; L = 1 mH; C = 0.22 µF. Determine; а) fob) XLс) Хсd) ze) isf) VRg) vLh) vci) Qj) BW

Question image 1Question image 2Question image 3Question image 4
