Question

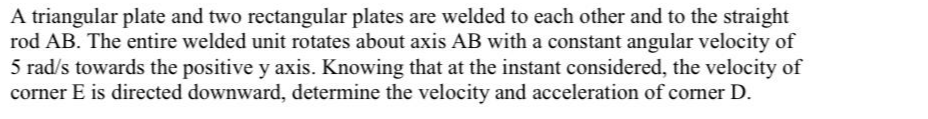

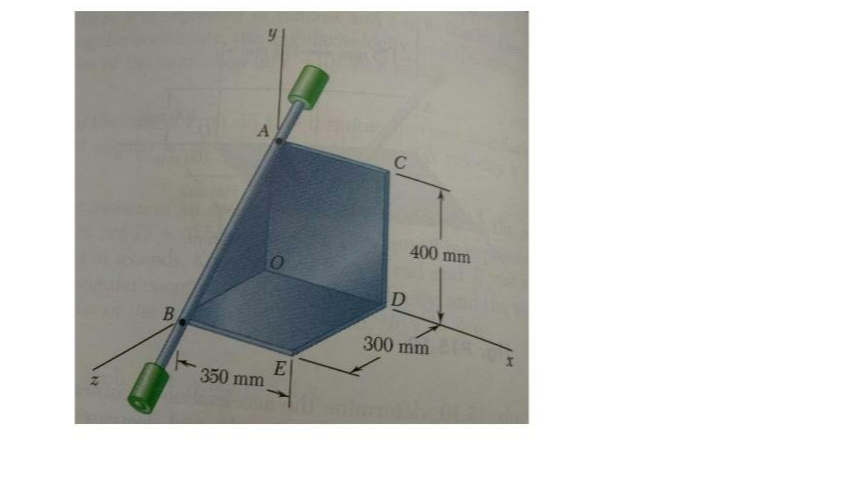

A triangular plate and two rectangular plates are welded to each other and to the straightrod AB. The entire welded unit rotates about axis AB with a constant angular velocity

of5 rad/s towards the positive y axis. Knowing that at the instant considered, the velocity of corner E is directed downward, determine the velocity and acceleration of corner D.
