Question

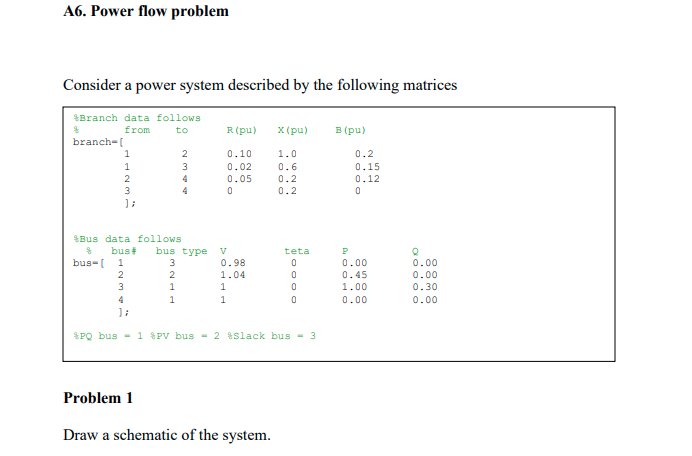

A6. Power flow problem Consider a power system described by the following matrices Branch data follows from to R (pu) x (pu) B (pu) branch-[ 1 2 0.10 1.0 0.2 1 3 0.02 0.6 0.15 2 4 0.05 0.2 0.12 3 4 0 0.2 0 ]; Bus data follows $ bus* bus type V teta P Q bus-[ 1 3 0.98 0 0.00 0.00 2 2 1.04 0 0.45 0.00 3 1 1 0 1.00 0.30 4 1 1 0 0.00 0.00 ]; PQ bus 1 PV bus 2 Slack bus - 3 Problem 1 Draw a schematic of the system.
Question image 1
