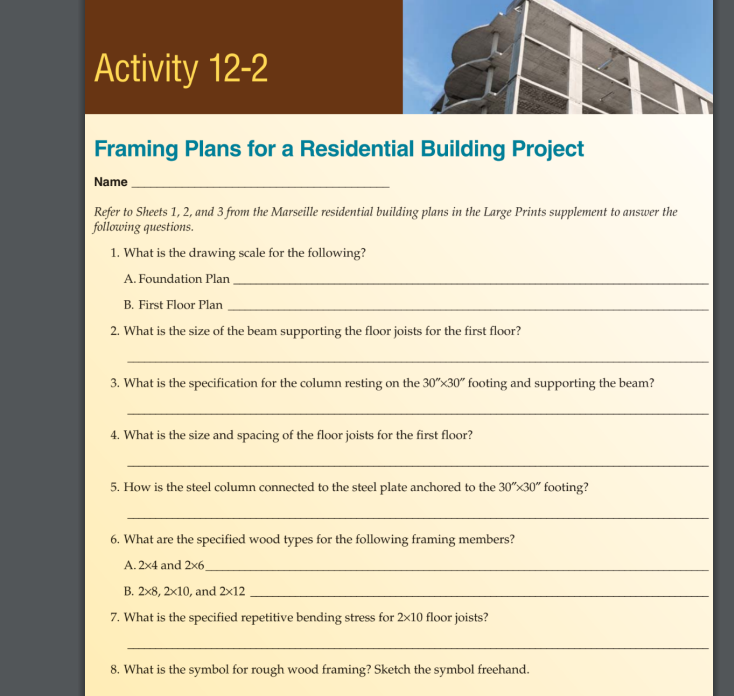

Activity 12-2 Framing Plans for a Residential Building Project Name Refer to Sheets 1, 2, and 3 from the Marseille residential building plans in the Large Prints supplement to answer the

following questions. 1. What is the drawing scale for the following? A. Foundation Plan B. First Floor Plan 2. What is the size of the beam supporting the floor joists for the first floor? 3. What is the specification for the column resting on the 30"x30" footing and supporting the beam? 4. What is the size and spacing of the floor joists for the first floor? 5. How is the steel column connected to the steel plate anchored to the 30" 30" footing? 6. What are the specified wood types for the following framing members? A. 2x4 and 2x6 B. 2x8,2x10, and 2x12 7. What is the specified repetitive bending stress for 2x10 floor joists? 8. What is the symbol for rough wood framing? Sketch the symbol freehand./nSection 4 Reading Prints 9. What is the live load for the first floor? 226 10. What is to be used for the header above the garage door? 11. What type of floor framing is required for the second-floor area? 12. Where on the first floor is the location of the loadbearing partition that carries the second-floor fr 13. What type of drywall is required in the garage? 14. What are the ceiling heights in the following areas? A. Great Room B. Dining C. Master Bedroom 15. What type of window is required to the right side of the front door?
