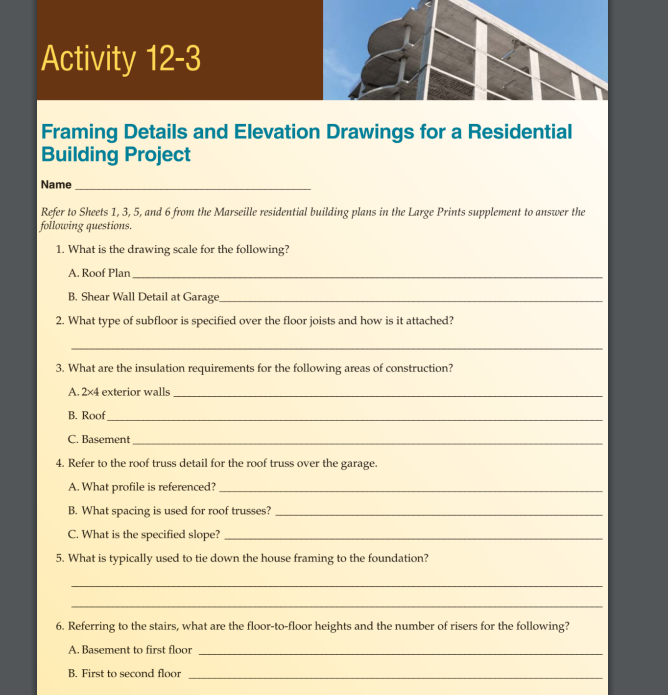

Activity 12-3 Framing Details and Elevation Drawings for a Residential Building Project Name Refer to Sheets 1, 3, 5, and 6 from the Marseille residential building plans in the Large Prints

supplement to answer the following questions. 1. What is the drawing scale for the following? A. Roof Plan B. Shear Wall Detail at Garage 2. What type of subfloor is specified over the floor joists and how is it attached? 3. What are the insulation requirements for the following areas of construction? A. 2x4 exterior walls B. Roof C. Basement, 4. Refer to the roof truss detail for the roof truss over the garage. A. What profile is referenced? B. What spacing is used for roof trusses? C. What is the specified slope?. 5. What is typically used to tie down the house framing to the foundation? 6. Referring to the stairs, what are the floor-to-floor heights and the number of risers for the following? A. Basement to first floor B. First to second floor/n28 Section 4 Reading Prints 7. What is specified for the weather-resistant membrane? 8. What is specified for the curved part of the roof over the upper-level middle windows?
