Answer the question stated (choose the right picture – a, b, c, or d - for the plumes shown). Forthe other three temperature profile options, draw a set of plumes

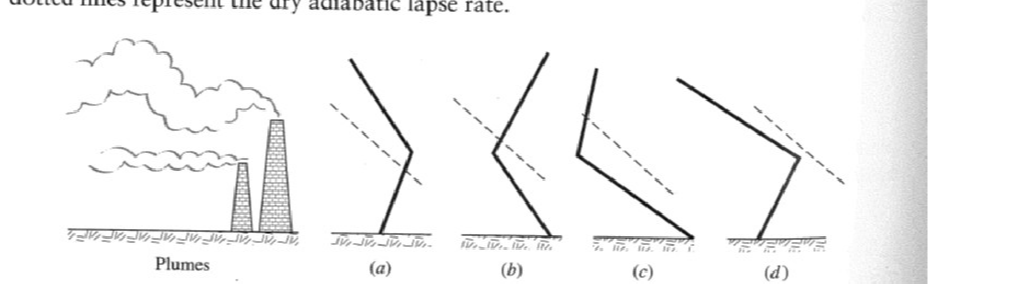

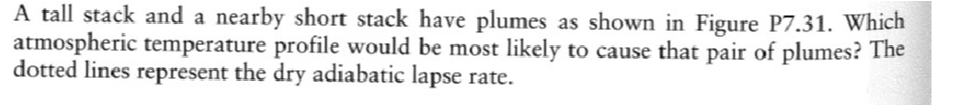

with the same two stacks shownthat would result from each of the other given temperature profiles. A tall stack and a nearby short stack have plumes as shown in Figure P7.31. Which atmospheric temperature profile would be most likely to cause that pair of plumes? The dotted lines represent the dry adiabatic lapse rate.
