Question

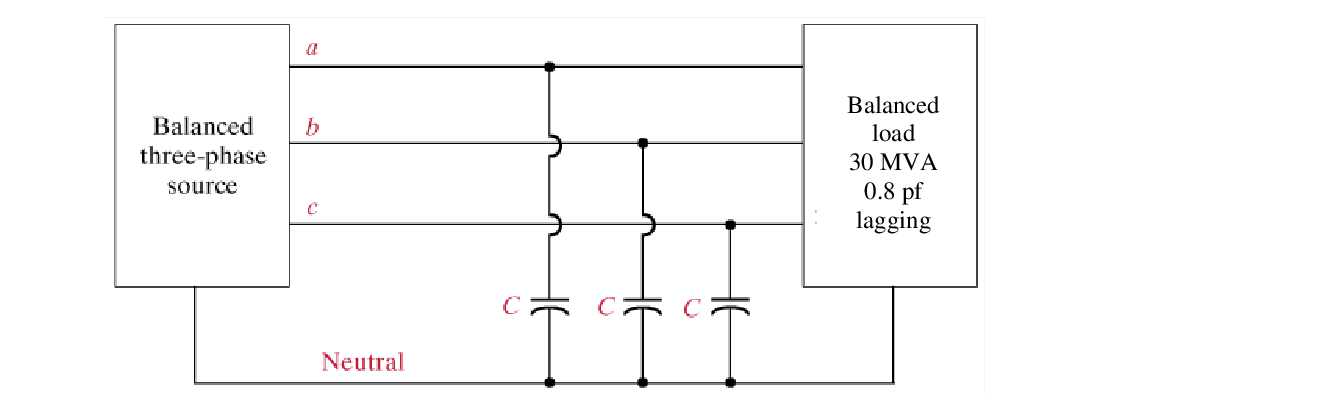

Consider the following three-phase system with f= 60 Hz, and Viine = 45 kV rms. a) Calculate the real and reactive powers and line currents before adding the capacitors(4 Marks)

b) Calculate the value of the compensating capacitors to achieve a leading power factor of 0.95. (4 Marks)

Question image 1Question image 2Question image 3Question image 4
