Question

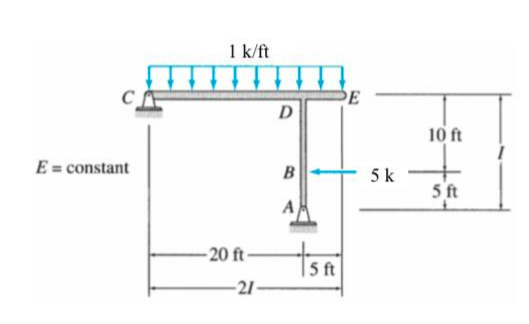

Consider the frame structure shown on the left under the given load.Calculate the reaction forces using the force method. Draw the shear and bending moment diagrams

Question image 1Question image 2
