Question

DC Circuits

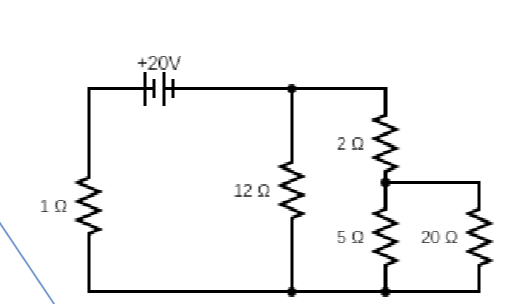

1. For the following, put all final answers in the table below or sketch a similar table. a. Solve for the equivalent resistance of the circuit. Put your final answer in the table. b. (20pts) Solve for the voltage across and thecurrent through each resistor in the circuit.Fill in the table.
