Question

Design a third order Butter worth stepped (Hi-Z Low-Z) low pass filter using microstriplines for a cutoff frequency of 2.4 GHz. Draw the final schematic in terms of normalized transmission

line impedances and lengths. Simulate using ADS and show S11 and S21plots to 5 GHz. Place Marker at 2.4 GHz.(33 pts)

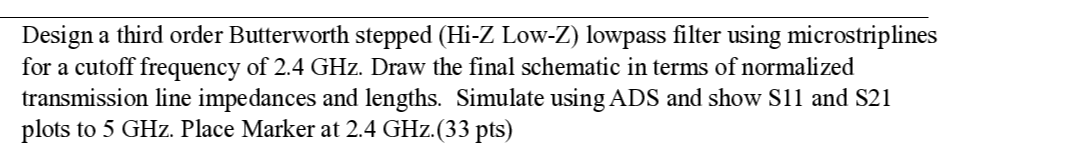

Question image 1
