Question

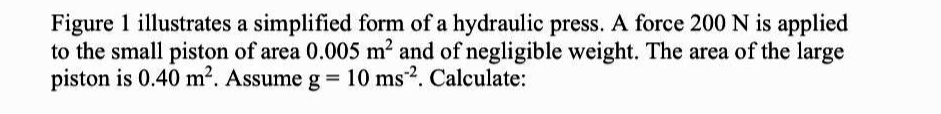

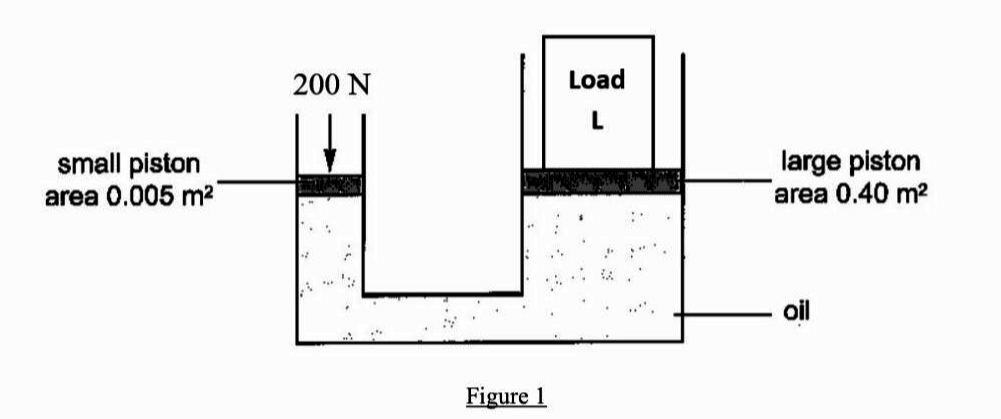

Figure 1 illustrates a simplified form of a hydraulic press. A force 200 N is applied to the small piston of area 0.005 m² and of negligible weight. The area of the large piston is 0.40 m². Assume g = 10 ms². Calculate:

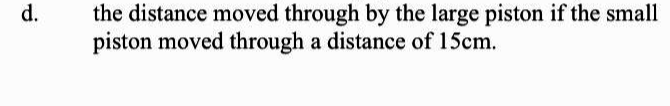

a.the pressure exerted on the liquid by the small piston, b.the pressure on the large piston. C.the force exerted by the large piston on the load L, d.the distance moved through by the large piston if the small piston moved through a distance of 15cm.
