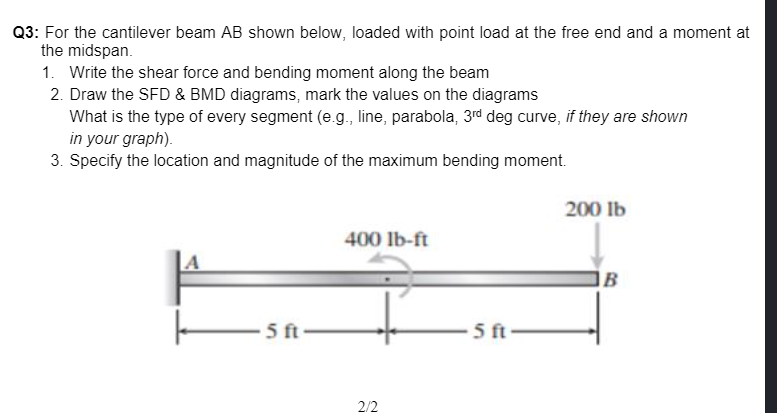

For the cantilever beam AB shown below, loaded with point load at the free end and a moment at

the midspan.

1. Write the shear force and bending moment along the beam

2. Draw the SFD & BMD diagrams, mark the values on the diagrams

What is the type of every segment (e.g., line, parabola, 3rd deg curve, if they are shown

in your graph).

3. Specify the location and magnitude of the maximum bending moment.
