Question

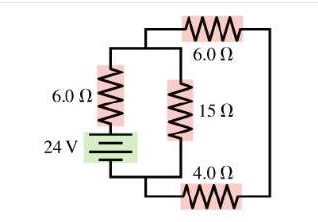

For the steps and strategies involved in solving a similar problem, you may view a Video Tutor Solution. For the circuit shown in the figure, find the current through resistor

R1=6.0 Q (left). (Figure 1) For the circuit shown in the figure, find the potential difference across resistor R1=6.0 Ω ( left ). For the circuit shown in the figure, find the current through resistor R2-15 Q. For the circuit shown in the figure, find the potential difference across resistor R2=15 Q

Question image 1Question image 2Question image 3Question image 4Question image 5Question image 6
