Question

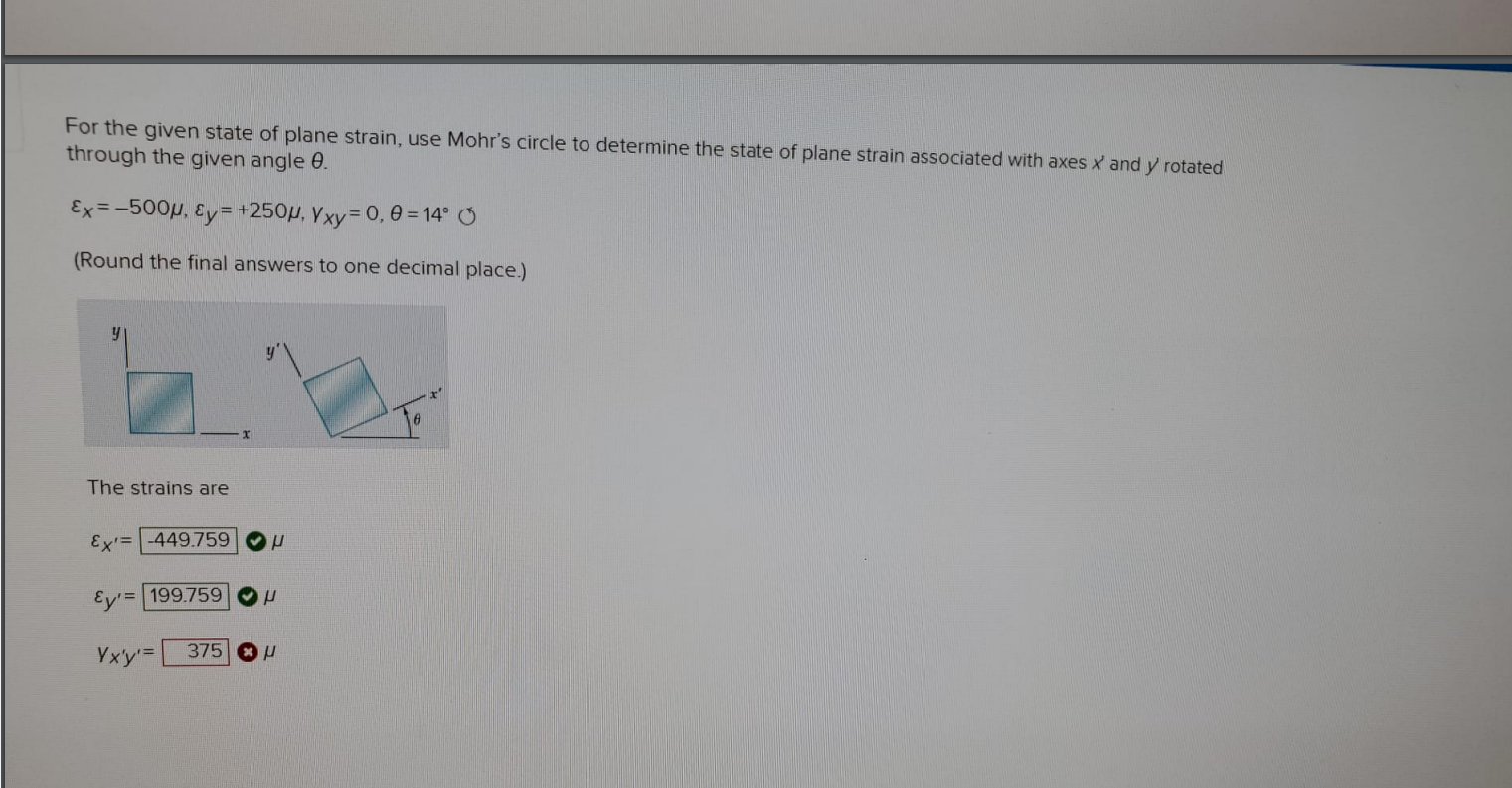

For the given state of plane strain, use Mohr's circle to determine the state of plane strain associated with axes x' and y rotated

through the given angle 9.

Ex=-500μ, Ey=+250μ, Yxy = 0, 0 = 14°

(Round the final answers to one decimal place.)

y

The strains are

Ex'= -449.759 U

Ey'= 199.759

Yx'y'=

P

375 U
