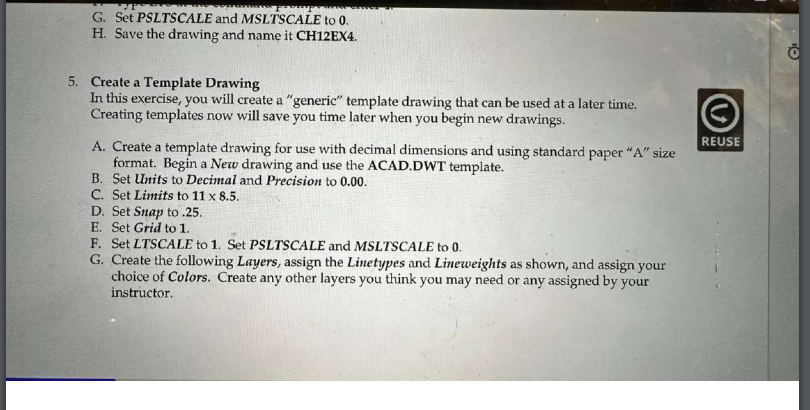

G. Set PSLTSCALE and MSLTSCALE to 0.

H. Save the drawing and name it CH12EX4.

5. Create a Template Drawing

In this exercise, you will create a "generic" template drawing that can be used at a later time.

Creating templates now will save you time later when you begin new drawings.

A. Create a template drawing for use with decimal dimensions and using standard paper "A" size

format. Begin a New drawing and use the ACAD.DWT template.

B. Set Units to Decimal and Precision to 0.00.

C. Set Limits to 11 x 8.5.

D. Set Snap to.25.

E. Set Grid to 1.

F. Set LTSCALE to 1. Set PSLTSCALE and MSLTSCALE to 0.

G. Create the following Layers, assign the Linetypes and Lineweights as shown, and assign your

choice of Colors. Create any other layers you think you may need or any assigned by your

instructor.
