Question

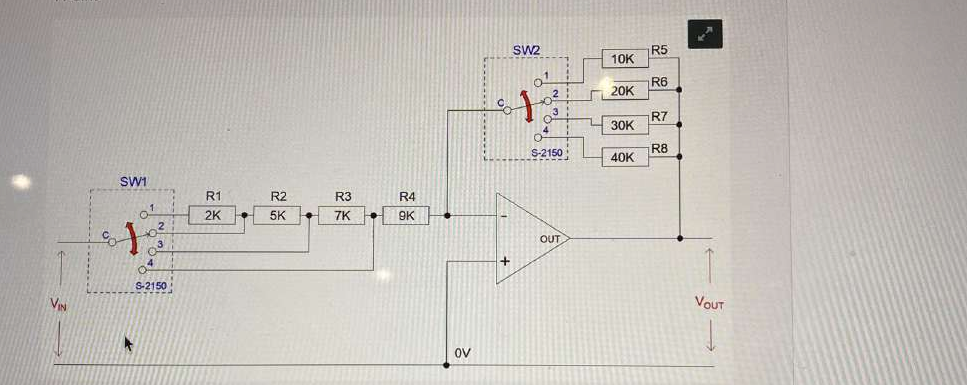

Given that the gain, A, of an inverting amplifier is given by: A=-\frac{R_{F}}{R_{I N}} What are the switch positions for 'SW1' and 'SW2' to achieve a gain of approximately -2.222 'SW1' in position '1' and 'SW2' in position '4' O'SW1' in position '4' and 'SW2' in position '2'

Question image 1Question image 2Question image 3Question image 4Question image 5Question image 6
