Question

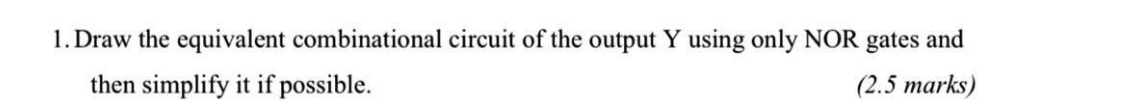

Given the below Boolean expression. Y = A.C +BOC 1. Draw the equivalent combinational circuit of the output Y using only NOR gates and then simplify it if possible.(2.5 marks)

Question image 1Question image 2Question image 3
