Question

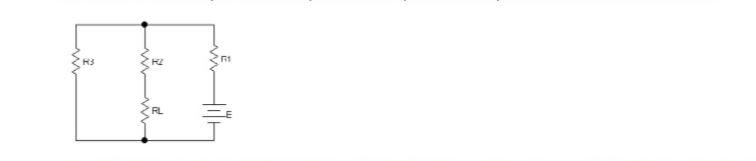

Glven that RI = 820 Ohm, R2 = 2.2 kohm, R3 = 6.8 kohm, RL = 4.7 kohm, E = 6 V. assume that RL Is the load. In you

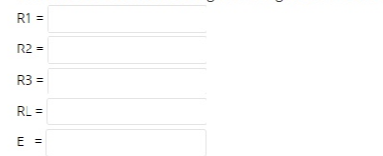

ETY kit, Iccate resistors R1. R2. R3, RL, and battery E. Measure them with your DMM and enter the values below. Keep engineering prefix notation, round to at least 3 significant digits, and include units.

Question image 1Question image 2Question image 3Question image 4
