Question

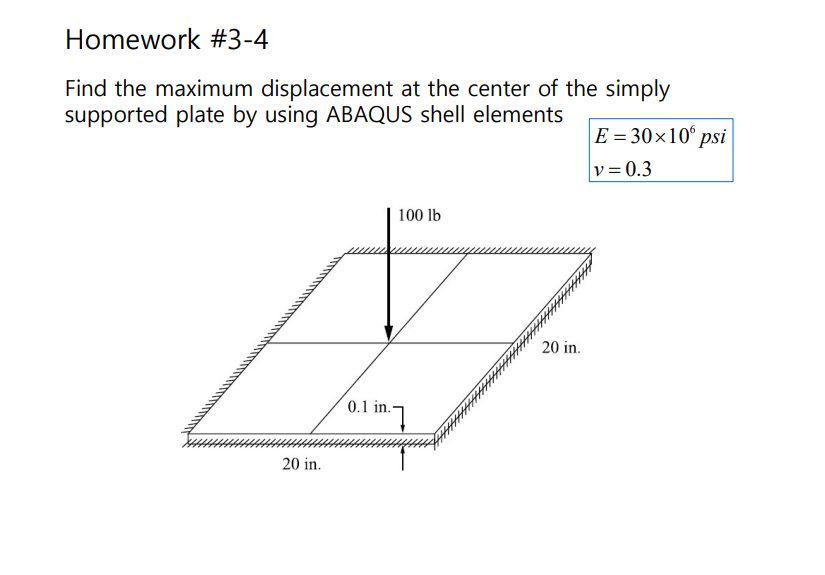

Homework #3-4

Find the maximum displacement at the center of the simply

supported plate by using ABAQUS shell elements

100 lb

G

20 in.

0.1 in.-

20 in.

E = 30×10⁰ psi

v=0.3

Question image 1
