Question

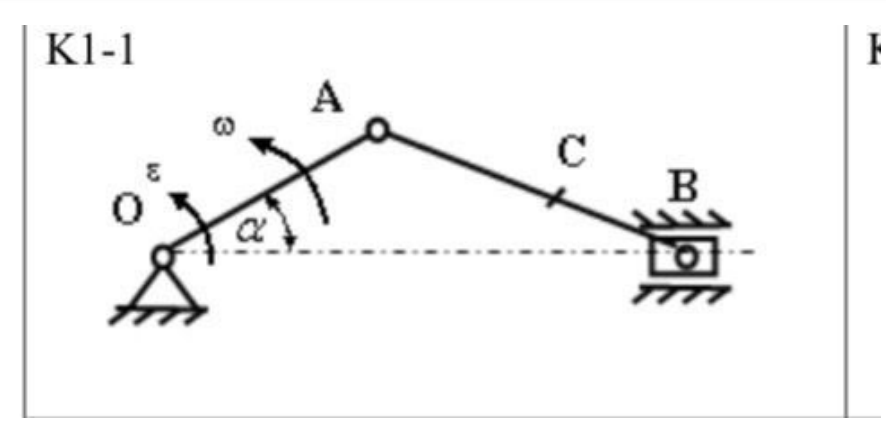

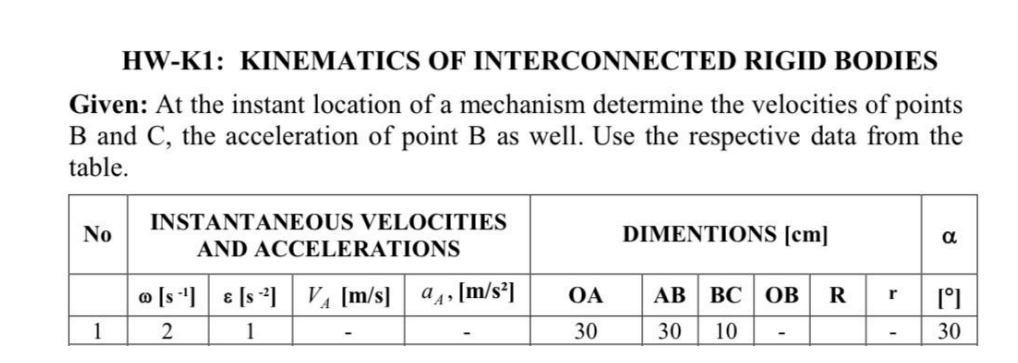

HW-K1: KINEMATICS OF INTERCONNECTED RIGID BODIES Given: At the instant location of a mechanism determine the velocities of points B and C, the acceleration of point B as well. Use the respective data from the table. No INSTANTANEOUS VELOCITIES AND ACCELERATIONS DIMENTIONS [cm] [s] [s] V₁ [m/s] a₁, [m/s²] OA АВ | ВС | ОВ R 1 2 1 30 30 10 - α - 30/nK1-1 3 A C B Ꮀ
Question image 1Question image 2
