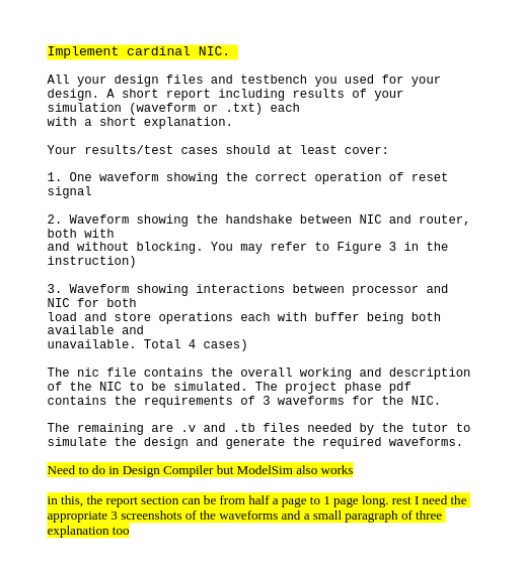

Implement cardinal NIC.

All your design files and testbench you used for your

design. A short report including results of your

simulation (waveform or .txt) each

with a short explanation.

Your results/test cases should at least cover:

1. One waveform showing the correct operation of reset

signal

2. Waveform showing the handshake between NIC and router,

both with

and without blocking. You may refer to Figure 3 in the

instruction)

3. Waveform showing interactions between processor and

NIC for both

load and store operations each with buffer being both

available and

unavailable. Total 4 cases)

The nic file contains the overall working and description

of the NIC to be simulated. The project phase pdf

contains the requirements of 3 waveforms for the NIC.

The remaining are .v and .tb files needed by the tutor to

simulate the design and generate the required waveforms.

Need to do in Design Compiler but ModelSim also works

in this, the report section can be from half a page to 1 page long. rest I need the

appropriate 3 screenshots of the waveforms and a small paragraph of three

explanation too
