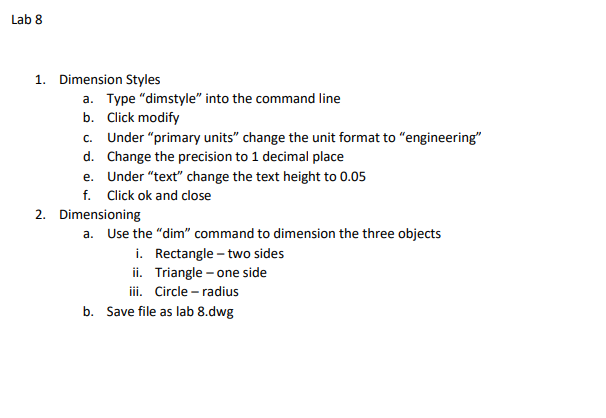

Lab 8

1. Dimension Styles

a. Type "dimstyle" into the command line

b. Click modify

c.

Under "primary units" change the unit format to "engineering"

Change the precision to 1 decimal place

d.

e.

Under "text" change the text height to 0.05

f. Click ok and close

2. Dimensioning

a. Use the "dim" command to dimension the three objects

i. Rectangle - two sides

ii. Triangle - one side

iii. Circle-radius

b. Save file as lab 8.dwg
