Name Problem 3. [20 pts] Common Gate and Common Drain amplifiers VpD RGI RG2 RDI VIN HMI 3 Rin a. Rin and Ro b. Gain V₁/Vin, Vo/V1, and vo/Vin Rp2 HM2

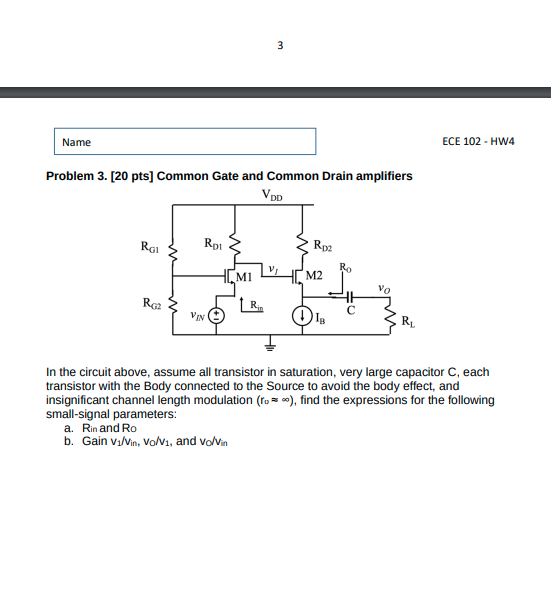

Ro R₁ ECE 102 - HW4 In the circuit above, assume all transistor in saturation, very large capacitor C, each transistor with the Body connected to the Source to avoid the body effect, and insignificant channel length modulation (ro), find the expressions for the following small-signal parameters:
