Question

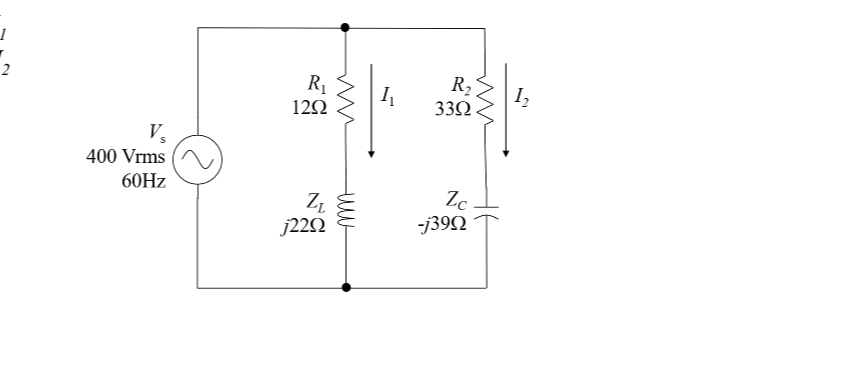

Name:Find currents I, and I, in the circuit shown below where the source voltage is 400 \angle 0^{\circ} \text { Vrms. Use phasors. } a. Find the impedance as seen by 1, b. Find the Impedance as seen by I, c. Find the impedance seen by the400 0° Vrms source. d. Find the current supplied by the400 V source .

Question image 1Question image 2Question image 3Question image 4Question image 5Question image 6Question image 7
