Question

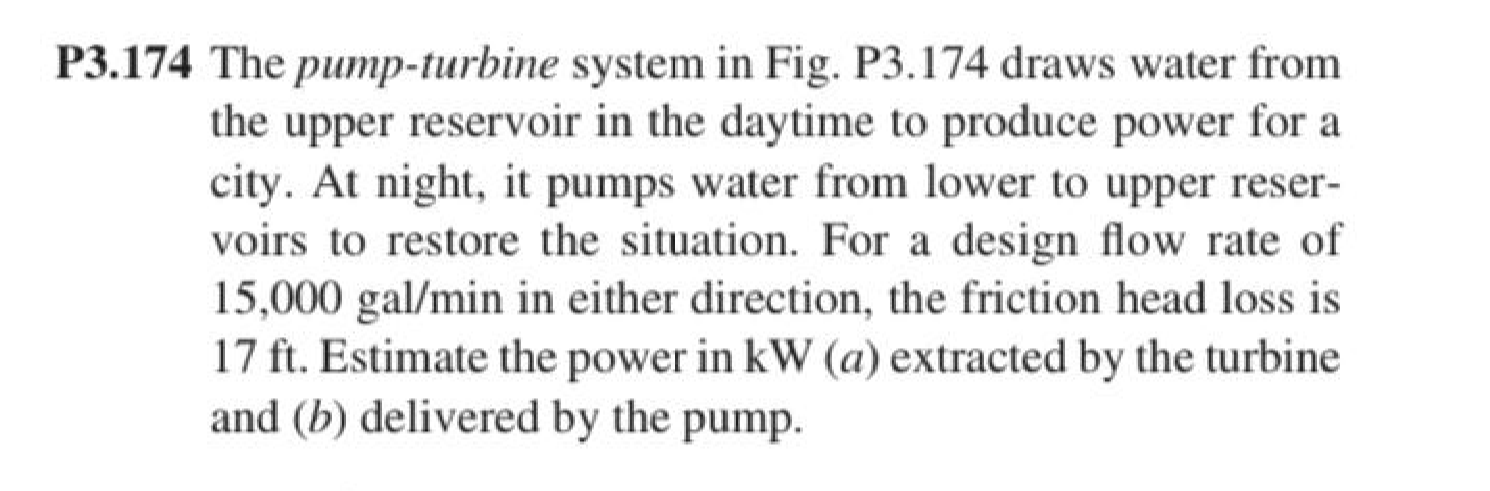

P3. 174 The pump-turbine system in Fig. P3. 174 draws water from the upper reservoir in the daytime to produce power for a city. At night, it pumps water from

lower to upper reservoirs to restore the situation. For a design flow rate of 15,000 gal/min in either direction, the friction head loss is 17 ft. Estimate the power in kW (a) extracted by the turbine and (b) delivered by the pump.

Question image 1Question image 2
