Question

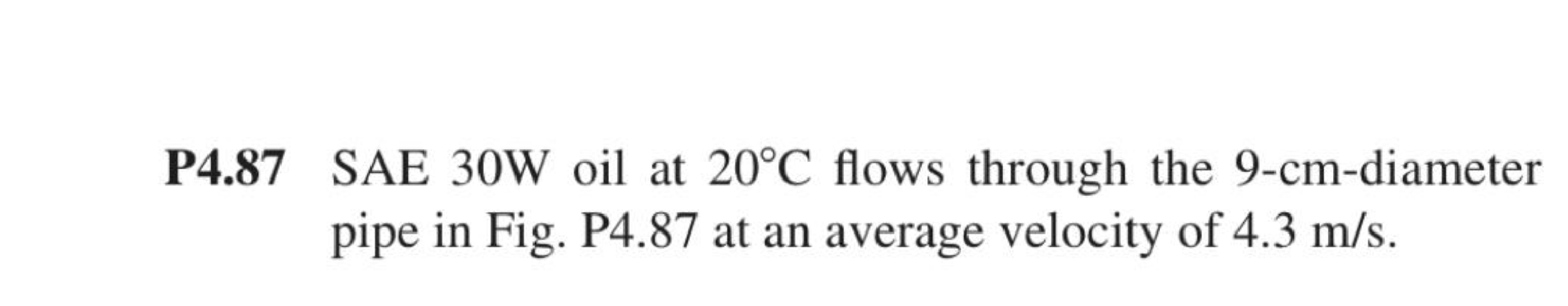

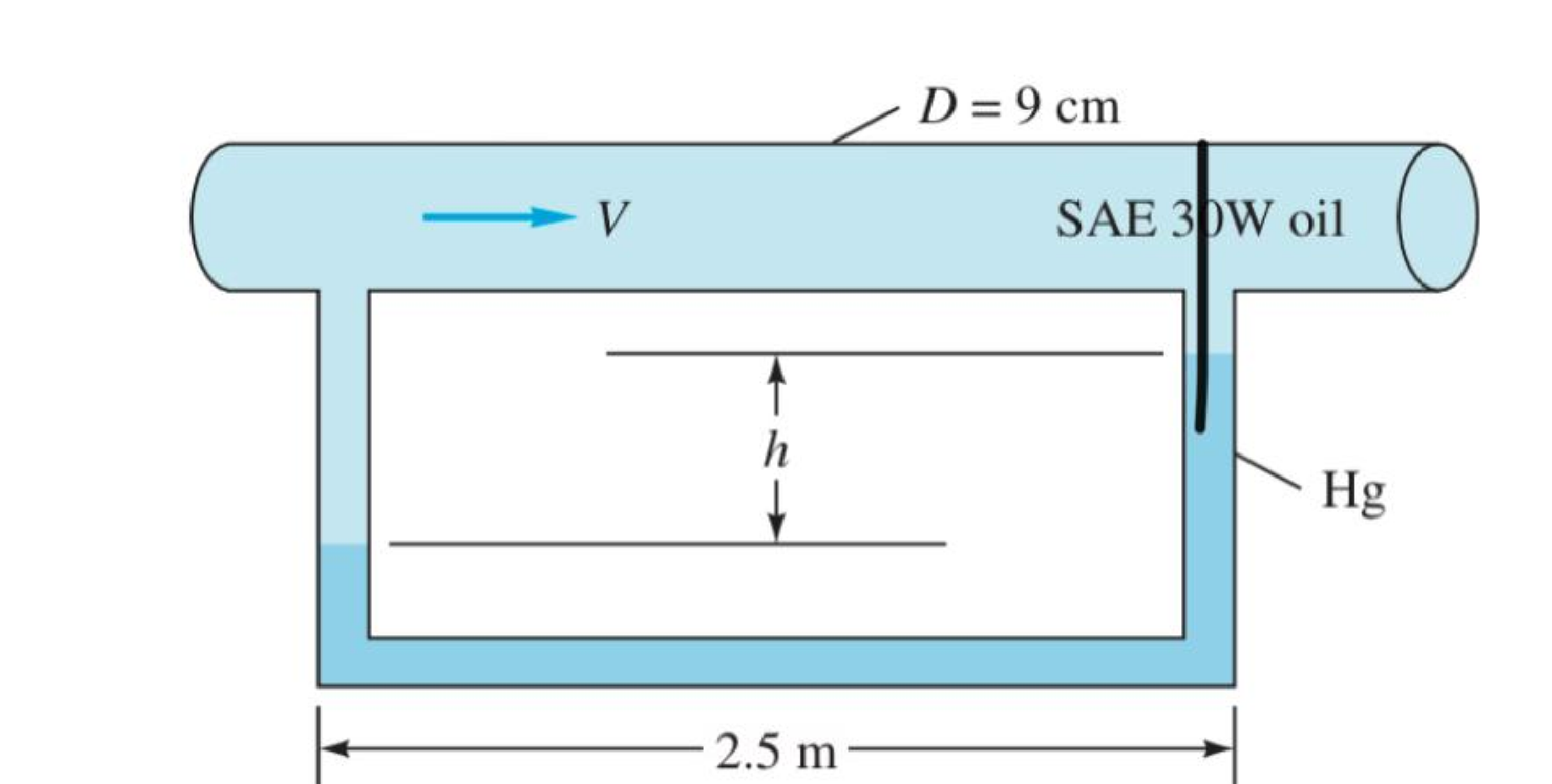

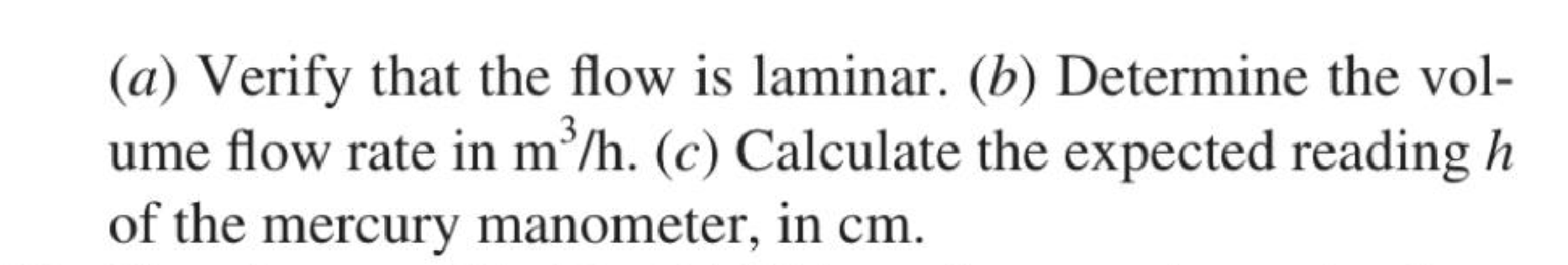

P4.87 SAE 30W oil at 20°C flows through the 9-cm-diameterpipe in Fig. P4.87 at an average velocity of 4.3 m/s. (a) Verify that the flow is laminar. (b) Determine the

volume flow rate in m’/h. (c) Calculate the expected reading h of the mercury manometer, in cm.

Question image 1Question image 2Question image 3
