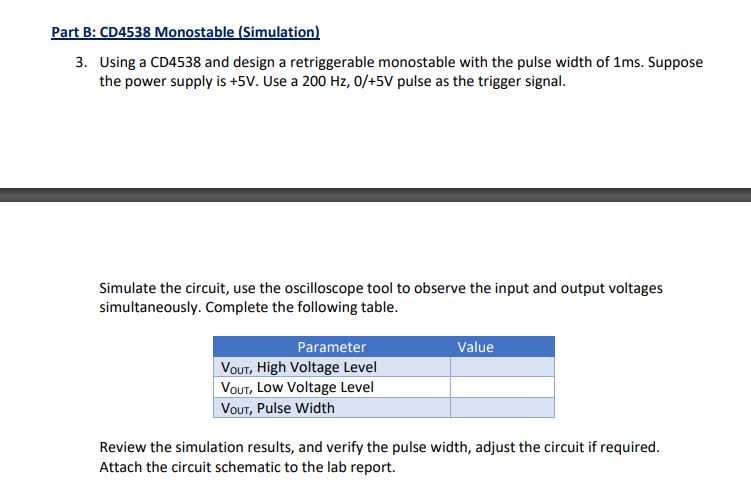

Part B: CD4538 Monostable (Simulation)

3.

Using a CD4538 and design a retriggerable monostable with the pulse width of 1ms. Suppose

the power supply is +5V. Use a 200 Hz, 0/+5V pulse as the trigger signal.

Simulate the circuit, use the oscilloscope tool to observe the input and output voltages

simultaneously. Complete the following table.

Parameter

VOUT, High Voltage Level

VOUT, Low Voltage Level

VOUT, Pulse Width

Value

Review the simulation results, and verify the pulse width, adjust the circuit if required.

Attach the circuit schematic to the lab report.
