Question

Plot the specific energy curve (E vs y) for q= 2cfs. Calculate the critical depth and critical energy for this flow rate. Determine the alternate depths for E= 2, 3, and 5 feet. Repeat for q=5 cfs and 10 cfs. Plot all three specific energy curves on the same graph.

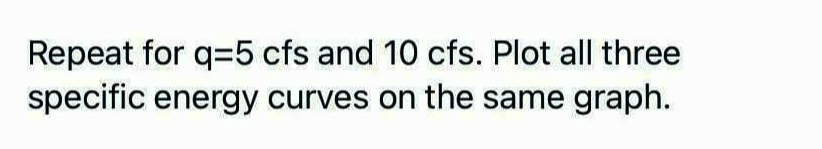

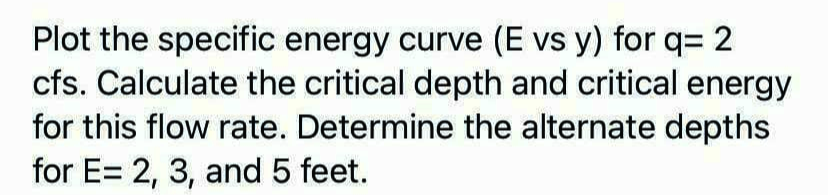

Question image 1Question image 2
