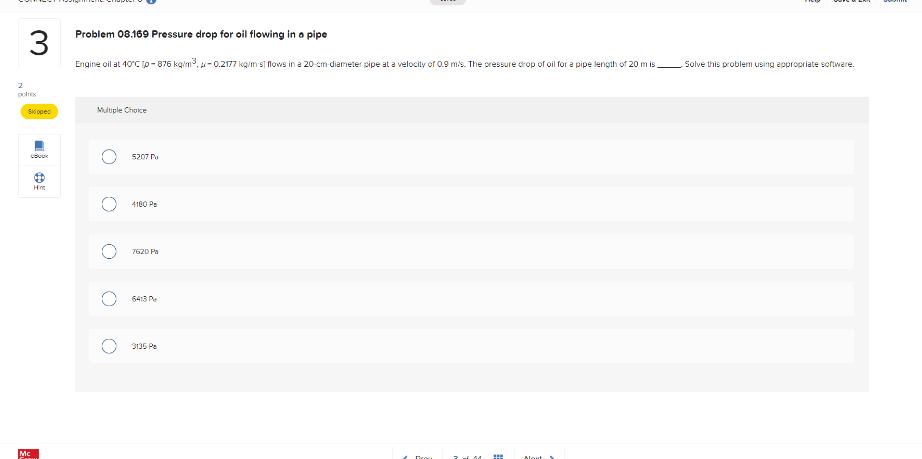

Problem 08.169 Pressure drop for oil flowing in a pipe

Engine oil at 40°C [p-876 kg/m³, -0.2177 kg/m-s] flows in a 20-cm-diameter pipe at a velocity of 0.9 m/s. The pressure drop of oil for a pipe length of 20 m is.

Multiple Choice

O

O

O

O

5207 D

4180 Pa

7620 Pa

6413 P

3135 Pa

***

Solve this problem using appropriate software.
