Prior to arriving at the laboratory to carry out this experiment, analyze the circuit shown in

1.0 (1) using superposition to calculate I3, I5, V2, and V3. Next, using Thevenin's Theorem,

derive the Thevenin equivalent voltage and resistance looking into the circuit between

nodes 'a' and 'b' (i.e. remove the 100 resistor). Record your calculated values in the

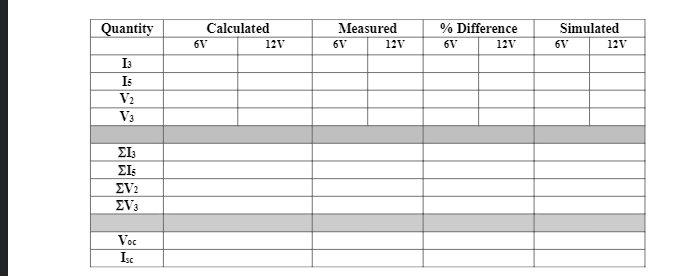

table below under the heading "Calculated". Remember to record polarities (+ or -).

Laboratory 2000-4 Network Theorems

Object: To become familiar with Thevenin's Theorem and Superposition
