Question

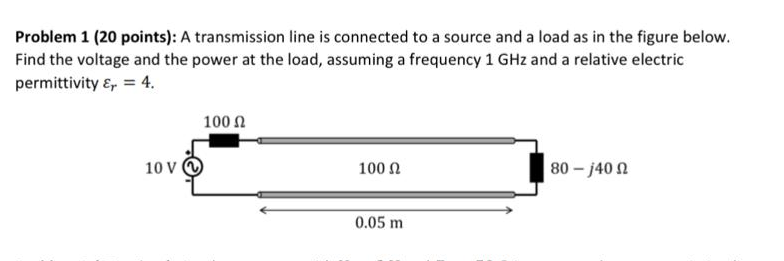

Problem 1 (20 points): A transmission line is connected to a source and a load as in the figure below.

Find the voltage and the power at the load, assuming a frequency 1 GHz and a relative electric

permittivity &, = 4.

10 V

100 Ω

100 Ω

0.05 m

| 80 – j40 Ω

Question image 1
