Question

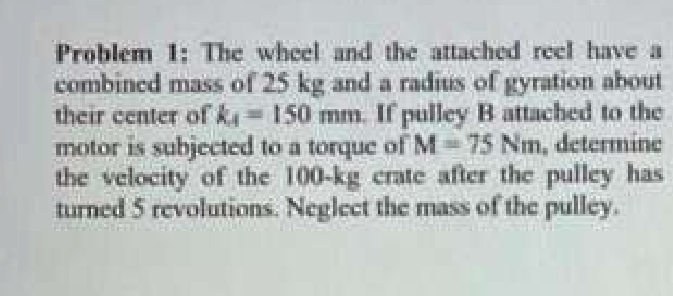

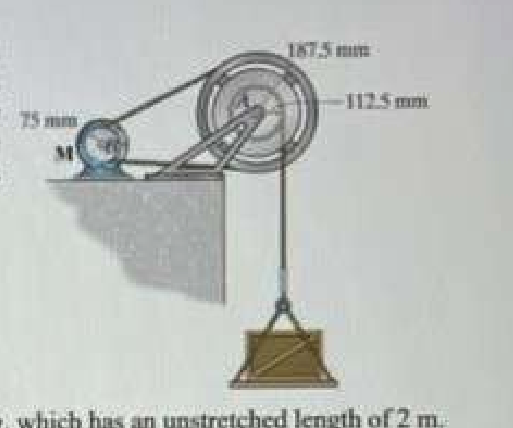

Problem 1: The wheel and the attached reel have a combined mass of 25 kg and a radius of gyration about their center of k4= 150 mm. If pulley B

attached to the motor is subjected to a torque of M= 75 Nm, determine the velocity of the 100-kg crate after the pulley has turned 5 revolutions. Neglect the mass of the pulley.

Question image 1Question image 2
