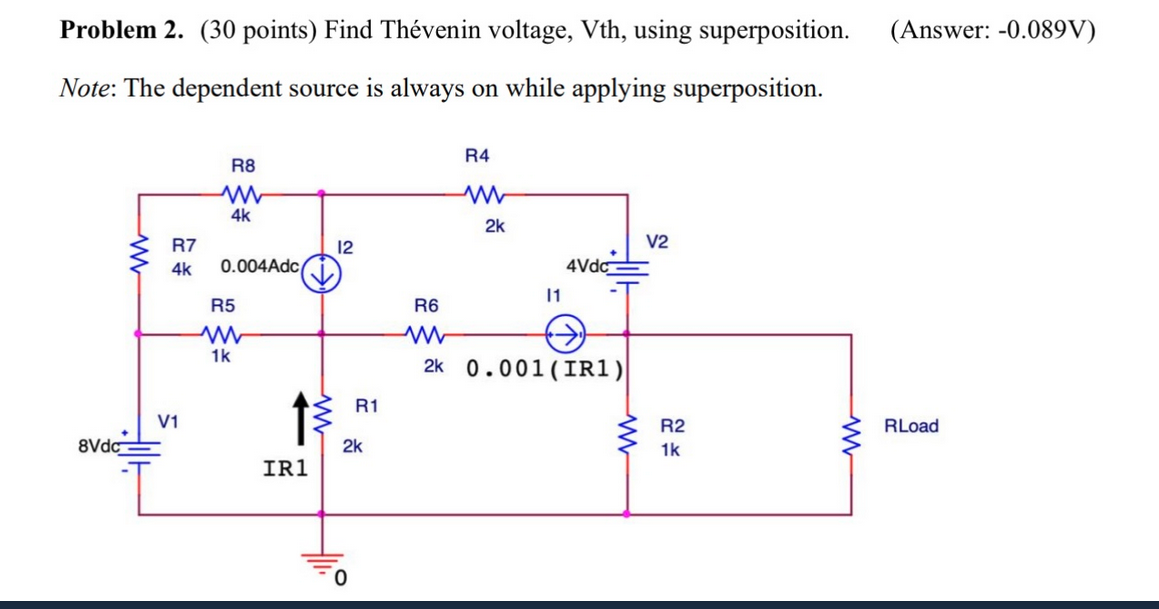

Problem 2. (30 points) Find Thévenin voltage, Vth, using superposition. (Answer: -0.089V)

Note: The dependent source is always on while applying superposition.
