Problem 2

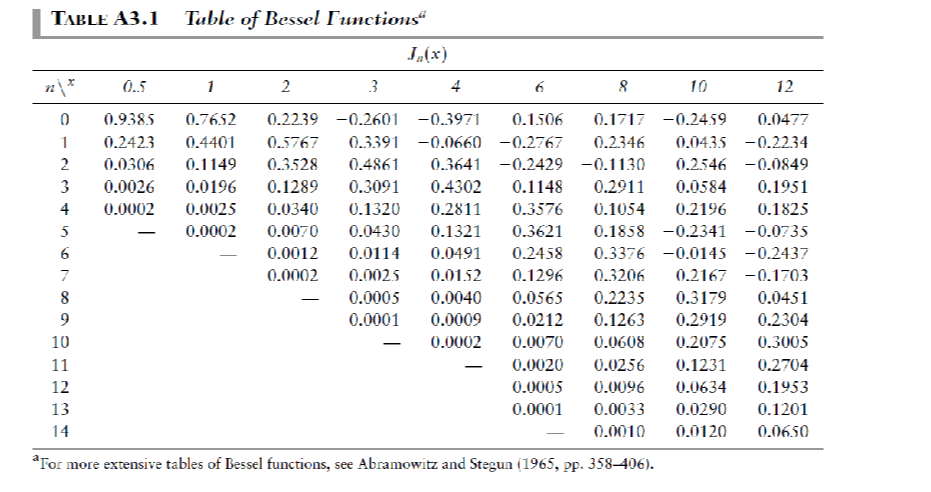

A carrier wave is FM using a sinusoidal signal of frequency fm and amplitude Am. a. Determine the values of the modulation index ß for which the carrier component of the FM wave is reduced to zero. (You may use the table or Matlab.) b. In a certain experiment conducted with fm = 1 kHz and increasing Am (starting from zero volt), it is found that the carrier component of the FM wave is reduced to zero for the first time when Am = 2 volts. What is the frequency sensitivity of the modulator? What is the value of Am for which the carrier component is reduced to zero for the second time?

Question image 1Question image 2Question image 3Question image 4
