Question

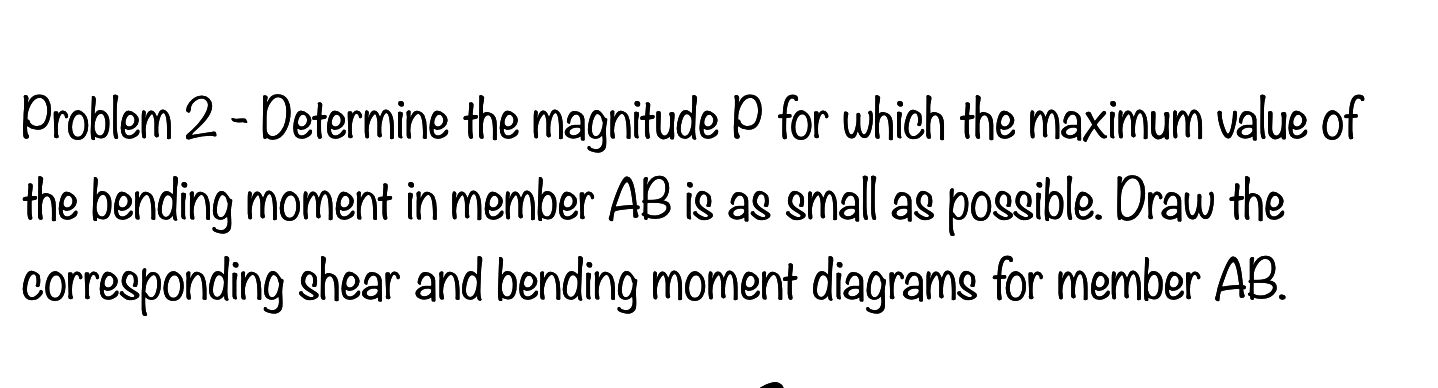

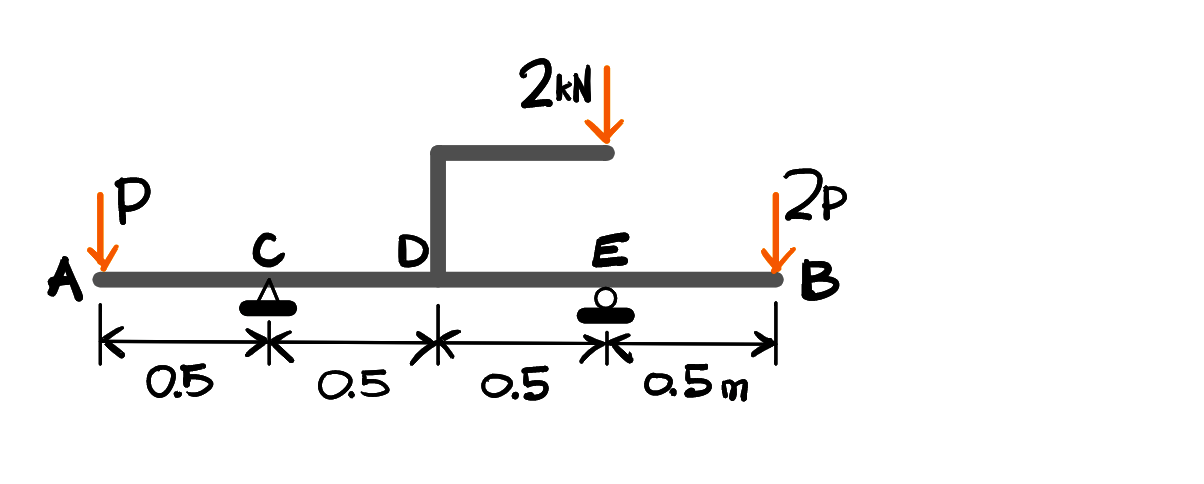

Problem 2 - Determine the magnitude p for which the maximum value of the bending moment in member AB is as small as possible. Draw the corresponding shear and bending

moment diagrams for member AB.

Question image 1Question image 2
