Question

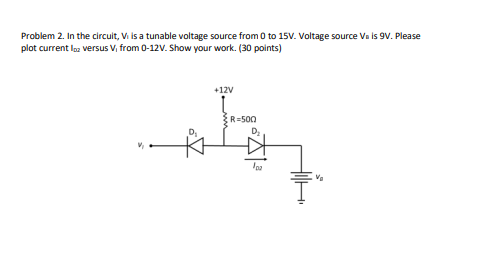

Problem 2. In the circuit, Vi is a tunable voltage source from 0 to 15V. Voltage source Va is 9V. Please

plot current lo versus V, from 0-12V. Show your work. (30 points)

+12V

R=500

D₂

Ipa

V₂

Question image 1
