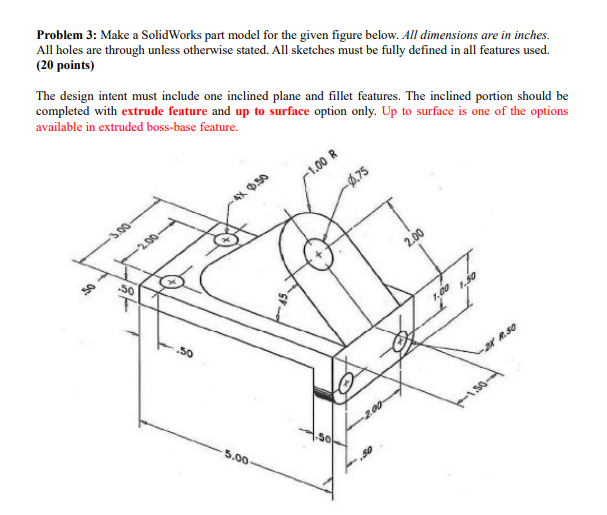

Problem 3: Make a SolidWorks part model for the given figure below. All dimensions are in inches. All holes are through unless otherwise stated. All sketches must be fully defined in

all features used. (20 points) The design intent must include one inclined plane and fillet features. The inclined portion should be completed with extrude feature and up to surface option only. Up to surface is one of the options available in extruded boss-base feature. 3.00. -2.00 .50 .50 5.00 1.00 R -0.75 200- 2.00 1.00 1.50 -2X R.30 -1.50-
