Problem 3: Mesh Analysis

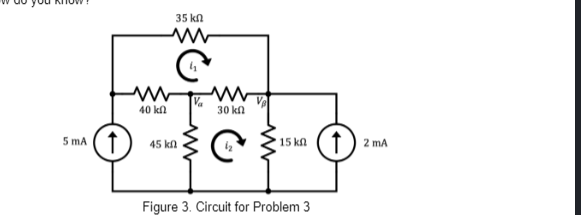

a. For the circuit in Figure 3, apply mesh analysis to solve for the mesh currents ₁ and ₂.

Report your answers in milliamps. You must follow and document all steps in the learning

module to receive full credit.

Hint: The two current sources directly set the unlabeled mesh currents on the lower left and

right. Note that positive current may not flow in the clockwise direction for these meshes.

b. Calculate the voltage difference across the 30 kn resistor in the center of the circuit.

c. Which node connected to the 30 kn resistor (Vor V) has the greater node voltage?

How do you know?

35 ΚΩ
