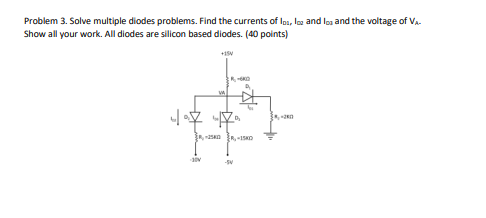

Problem 3. Solve multiple diodes problems. Find the currents of los, Ice and loa and the voltage of V₁-

Show all your work. All diodes are silicon based diodes. (40 points)
