Problem 5:

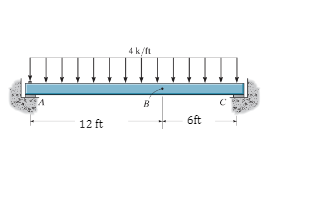

*9-36. Determine the slope and displacement at point B.

Assume the support at A is a pin and C is a roller. Account

for the additional strain energy due to shear. Take

E=200GPa, I=125x10^6mm, G=80GPa, and assume AB has a

cross-sectional area of A=4.5x10³mm². Use the method of

virtual work.
