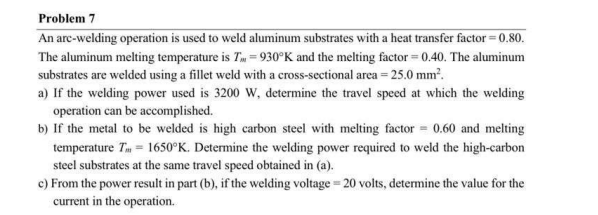

Problem 7

An arc-welding operation is used to weld aluminum substrates with a heat transfer factor = 0.80.

The aluminum melting temperature is T = 930°K and the melting factor = 0.40. The aluminum

substrates are welded using a fillet weld with a cross-sectional area = 25.0 mm².

a) If the welding power used is 3200 W, determine the travel speed at which the welding

operation can be accomplished.

b) If the metal to be welded is high carbon steel with melting factor= 0.60 and melting

temperature T = 1650°K. Determine the welding power required to weld the high-carbon

steel substrates at the same travel speed obtained in (a).

c) From the power result in part (b), if the welding voltage = 20 volts, determine the value for the

current in the operation.
