Question

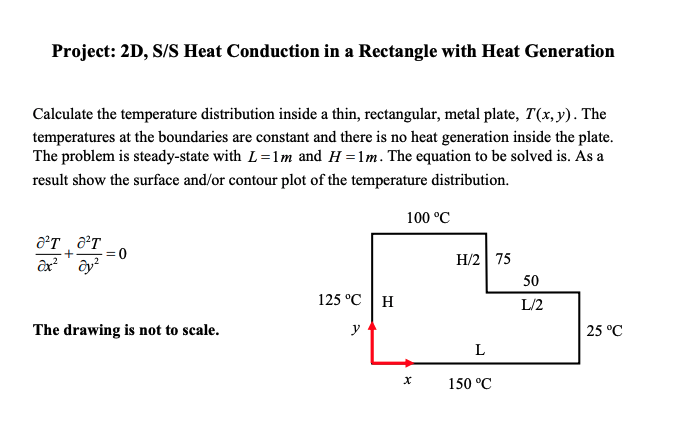

Project: 2D, S/S Heat Conduction in a Rectangle with Heat Generation Calculate the temperature distribution inside a thin, rectangular, metal plate, T(x, y). The temperatures at the boundaries are constant and there is no heat generation inside the plate. The problem is steady-state with L=1m and H=1m. The equation to be solved is. As a result show the surface and/or contour plot of the temperature distribution. a²T ²T + =0 The drawing is not to scale. 125°C H y 100 °C H/2 75 50 L/2 25 °C L x 150 °C
Question image 1
