Question

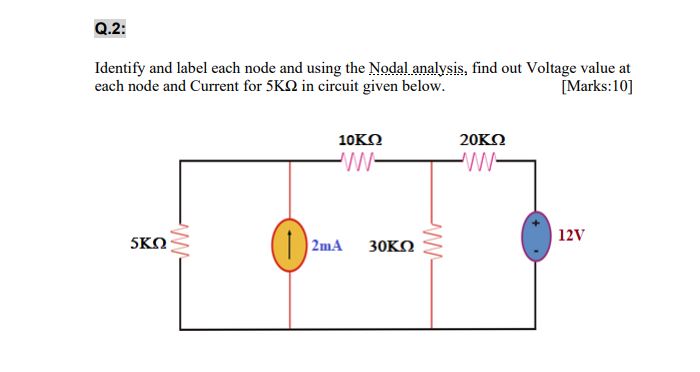

Q.2: Identify and label each node and using the Nodal analysis, find out Voltage value at each node and Current for 5KQ in circuit given below. [Marks:10] 10ΚΩ 20ΚΩ Www- -w- 5KQ 1 2mA 30ΚΩ www 12V
Question image 1
